90° Corner unit 6” (15,2 cm)

90° Corner unit

Size: 6” (15,2 cm)

Bundle of 8 corner sets
covers 33.28 sq ft (3.1 m²)

THE INTEGRASPEC DIFFERENCE

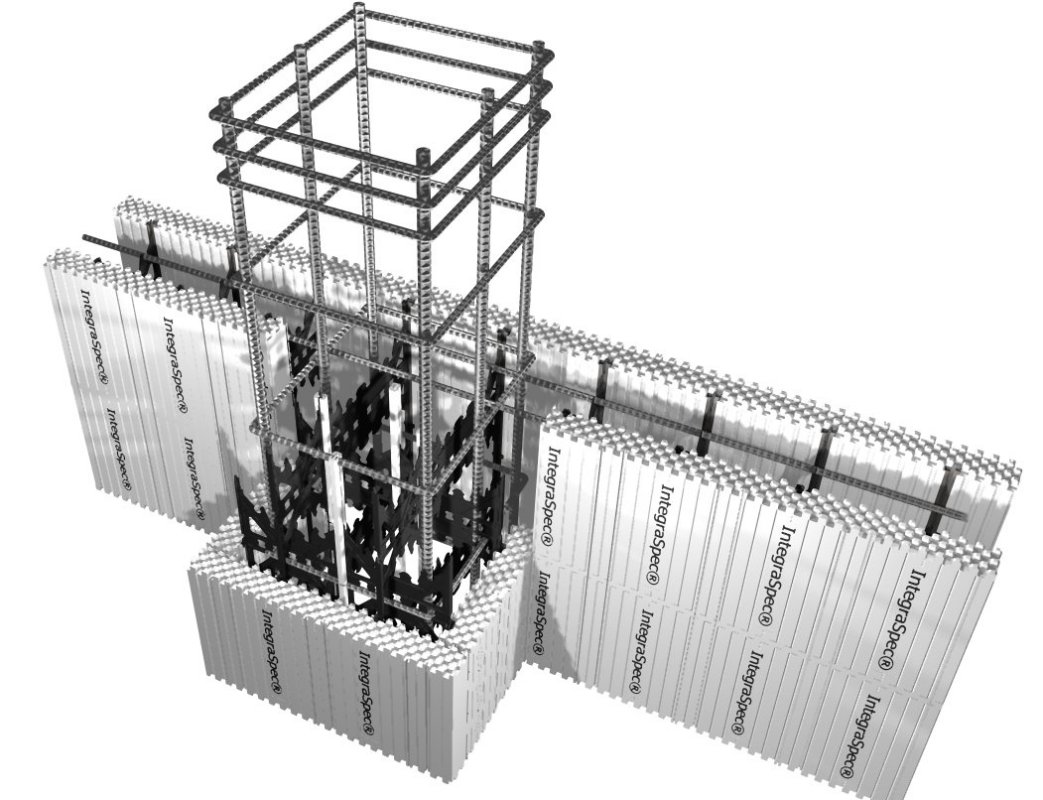

IntegraSpec is the original bi-directional, reversible, and perpendicular-interlocking ICF building system with no top, bottom, left, or right forms. Unlike many ICF systems, IntegraSpec’s independent panel allows free-form design of walls, footings, and columns of any shape and size, rather than being handcuffed to a block system that installs like masonry. The IntegraSpec high-impact polystyrene (HIPS) plastic inserts are bonded/fused within the IntegraSpec expanded polystyrene (EPS) foam panels, making IntegraSpec one of the strongest ICF systems on the market. It supports fast pour rates using high‑slump or self‑levelling concrete, helping to eliminate cold joints, voids, honeycombing, and crooked or wavy walls.

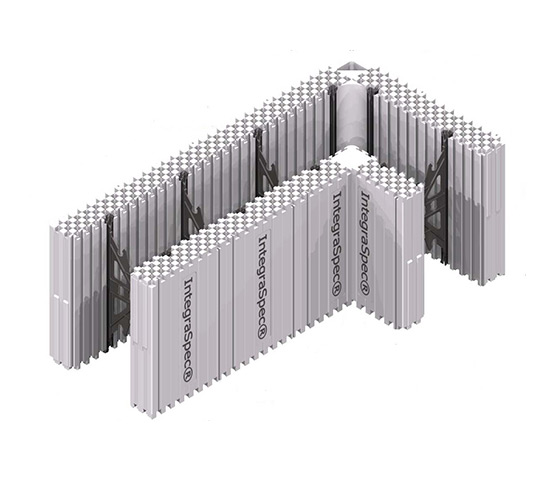

90° Corner Set

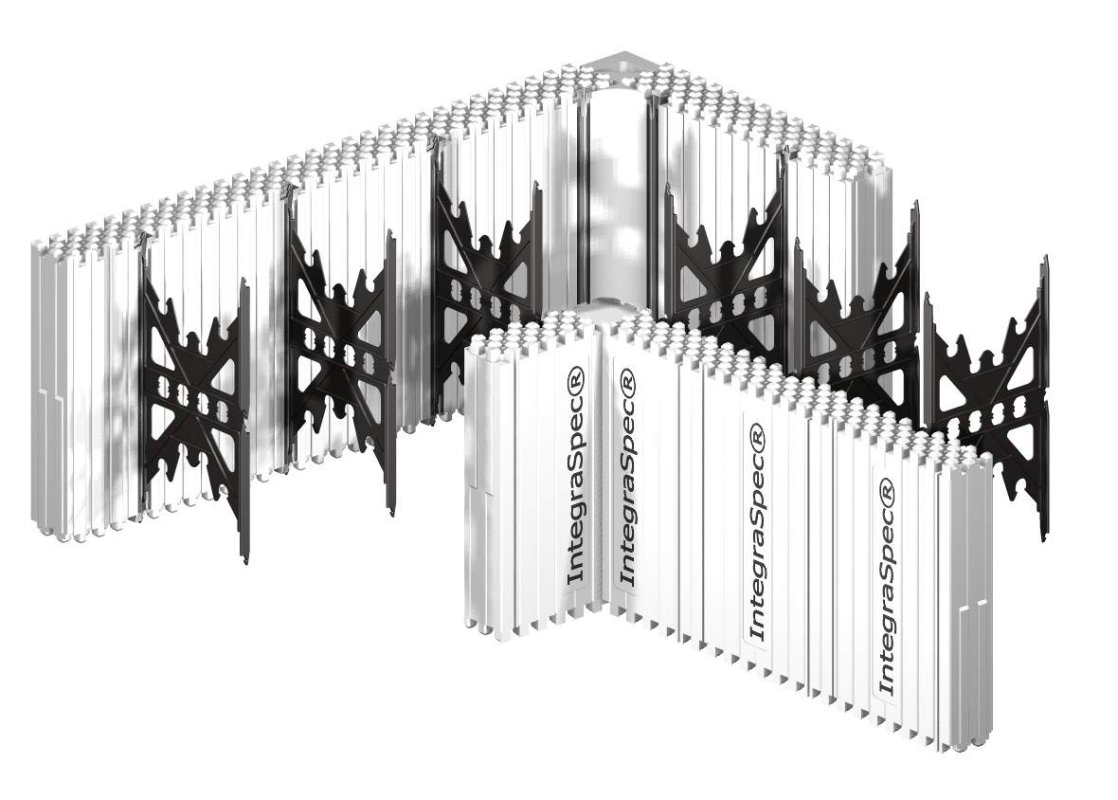

IntegraSpec corners are pre‑moulded and completely reversible—no top, bottom, left, or right side. The inside and outside 90° panels are completely independent and can be assembled opposite or above/below each other, allowing far greater design and construction flexibility. The outside 90° panel may also be used to form pilasters, and the inside panel to form T‑walls.
