IntegraSpacers
Pack quantities: 216 (4–8″) or 108 (10–12″) per box.
THE INTEGRASPEC DIFFERENCE
IntegraSpec is the original bi‑directional and reversible ICF building system with no top, bottom, left or right forms. Unlike other ICFs, IntegraSpec® is a patented independent panel system—not a rigid block. Walls are easier to assemble and cut, retain concrete, and stay straight thanks to the unique interlocking, reversible, and independent design.
INTEGRASPEC SPACERS / WEBS

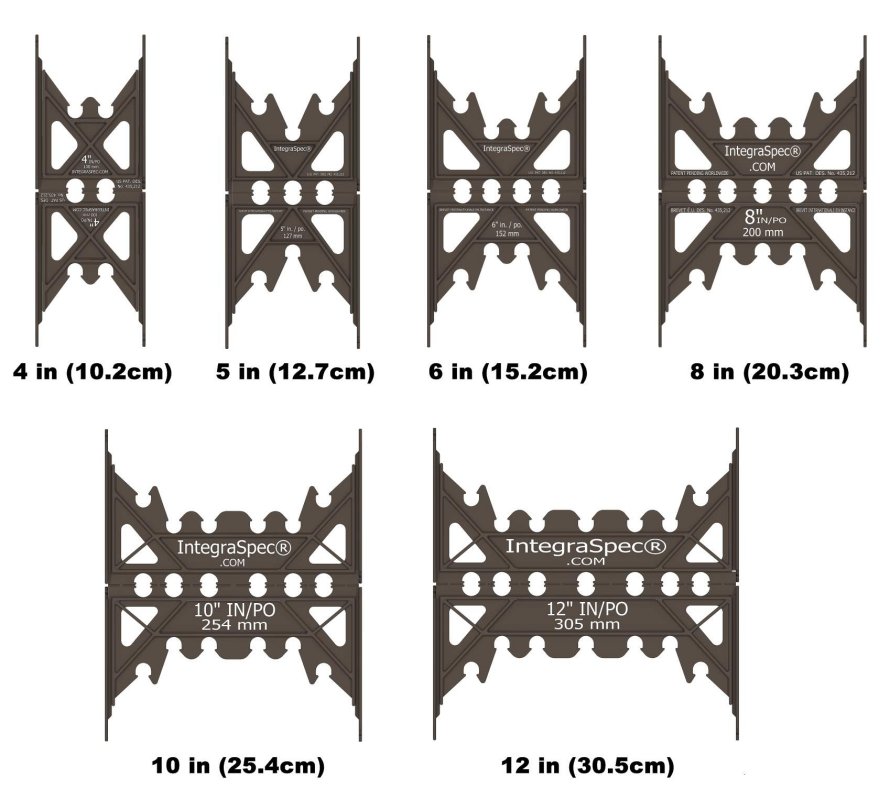

Concrete core spacers available: 4″ (102 mm), 5″ (127 mm), 6″ (152 mm), 8″ (203 mm), 10″ (254 mm) and 12″ (305 mm). Spacers lock on top of each other during wall assembly; they can also be broken into two equal halves to accommodate wall heights, openings and lintels, and to increase rebar placement opportunities in the walls (and lintels). Spacers may also be joined using an Integra H Clip for wider concrete wall requirements in commercial wall applications, footings, pilasters and columns.
Specifications
IntegraSpacers plastic material
High‑impact polystyrene (HIPS) (recycled material).
Unique spacer features
Bi‑directional and reversible (no top, bottom, left or right). Incorporates multiple rebar holders. Breakable into two equal halves; can be cut for custom applications.
Interlocking design
Slides into panel inserts and interlocks one on top of another.
Typical fastening studs/strapping
Vertical 1⅝″ (4.1 cm) wide.
4″ spacers details
Size: 4″ (10.2 cm).
Packaging: Box.
Quantity: 216 per box.
Approx. box weight: 35 lb (16 kg).
Bundle size: 20″ × 13.5″ × 17.5″ (51 cm × 34 cm × 45 cm).
5″ spacers details
Size: 5″ (12.7 cm).
Packaging: Box.
Quantity: 216 per box.
Approx. box weight: 38 lb (17.2 kg).
Bundle size: 25″ × 11.5″ × 17.5″ (64 cm × 29 cm × 45 cm).
6″ spacers details
Size: 6″ (15.2 cm).
Packaging: Box.
Quantity: 216 per box.
Approx. box weight: 41 lb (18.6 kg).
Bundle size: 25″ × 13.5″ × 17.5″ (64 cm × 34 cm × 45 cm).
8″ spacers details
Size: 8″ (20.3 cm).
Packaging: Box.
Quantity: 216 per box.
Approx. box weight: 48 lb (21.8 kg).
Bundle size: 35″ × 13.5″ × 17.5″ (89 cm × 34 cm × 45 cm).
10″ spacers details
Size: 10″ (25.4 cm).
Packaging: Box.
Quantity: 108 per box.
Approx. box weight: 27 lb (12.3 kg).
Bundle size: 22″ × 13.5″ × 17.5″ (56 cm × 34 cm × 45 cm).
12″ spacers details
Size: 12″ (30.5 cm).
Packaging: Box.
Quantity: 108 per box.
Approx. box weight: 38 lb (17 kg).
Bundle size: 25″ × 13.5″ × 17.5″ (64 cm × 34 cm × 45 cm).
THE BENEFITS OF INTEGRASPEC®
ENERGY EFFICIENCY
Owners enjoy energy savings up to 100% (net zero).
STRUCTURAL STABILITY
IntegraSpec® offers great protection from high winds in hurricane and tornado areas, withstanding winds in excess of 250 mph.
QUIET
STC rating of 50+ (or greater when combined with other sound‑reduction materials).
IMPROVED AIR QUALITY
Contains no volatile organic compounds (VOCs) and does not support the growth of mould or mildew.
MOISTURE PROTECTION
IntegraSpec® helps eliminate moisture and condensation.
FIRE PROTECTION
Fire protection for several hours ensuring superior safety for your family.
FAST & RELIABLE
With IntegraSpec ICF, you complete six steps in one application.
THE ECO-FRIENDLY SOLUTION
100% recyclable; net zero homes; LEED/Passivhaus; geothermal shell compliant.
REDUCE WASTE ON SITE
Panels are reversible and bi‑directional, eliminating top, bottom, left and right—greatly reducing material waste.
