Standard Panels
Bundle of 18 panels
covers 36.72 sq ft (3.41 m²)
THE INTEGRASPEC DIFFERENCE
IntegraSpec is the original bi‑directional, reversible, and perpendicular‑interlocking ICF building system
with no top, bottom, left, or right forms. Unlike other ICFs, IntegraSpec’s independent panels allow you to
form walls, footings, and columns of any shape and size without being handcuffed like an ICF block, which
installs like a masonry product. The IntegraSpec High‑Impact Polystyrene (HIPS) plastic inserts are
bonded/fused within the IntegraSpec Expanded Polystyrene (EPS) foam panels, making IntegraSpec one of the
strongest ICF systems on the market, with one of the fastest pouring rates using high‑slump or self‑levelling
concrete to eliminate cold joints, voids, honeycombing, and crooked or wavy walls.

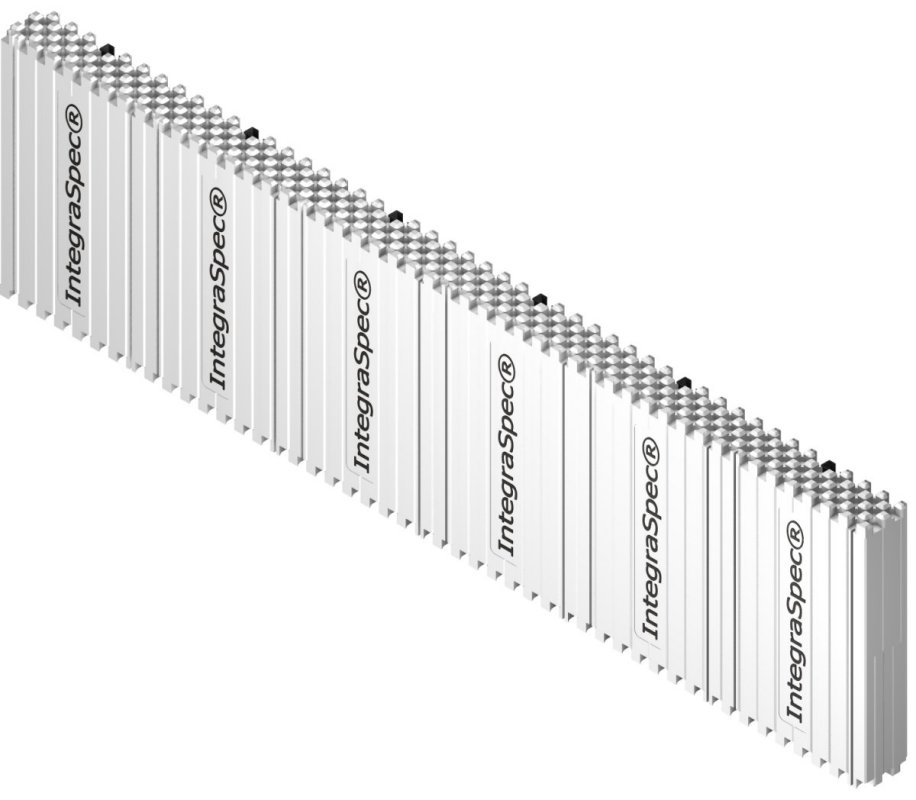

STANDARD PANELS
IntegraSpec’s STANDARD PANELS are THE ULTIMATE and the only UNIVERSAL, INDEPENDENT PANELS with NO TOP,
BOTTOM, LEFT, OR RIGHT SIDE. Because they interlock in any configuration, cut panels can also be used in the
wall assembly, creating very little to no waste. Standard panels are the same unit for all concrete core
sizes and for building walls, columns and footings. They may also be mitered to form corners and curved

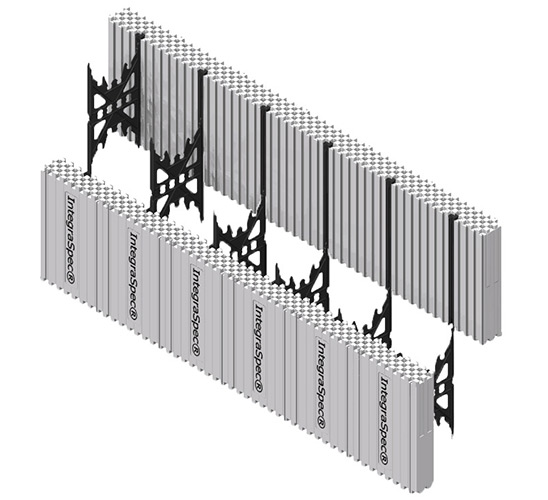

walls. Each panel provides embedded vertical fastening/studs every 8 in (203 mm) on center. Easy slide‑in

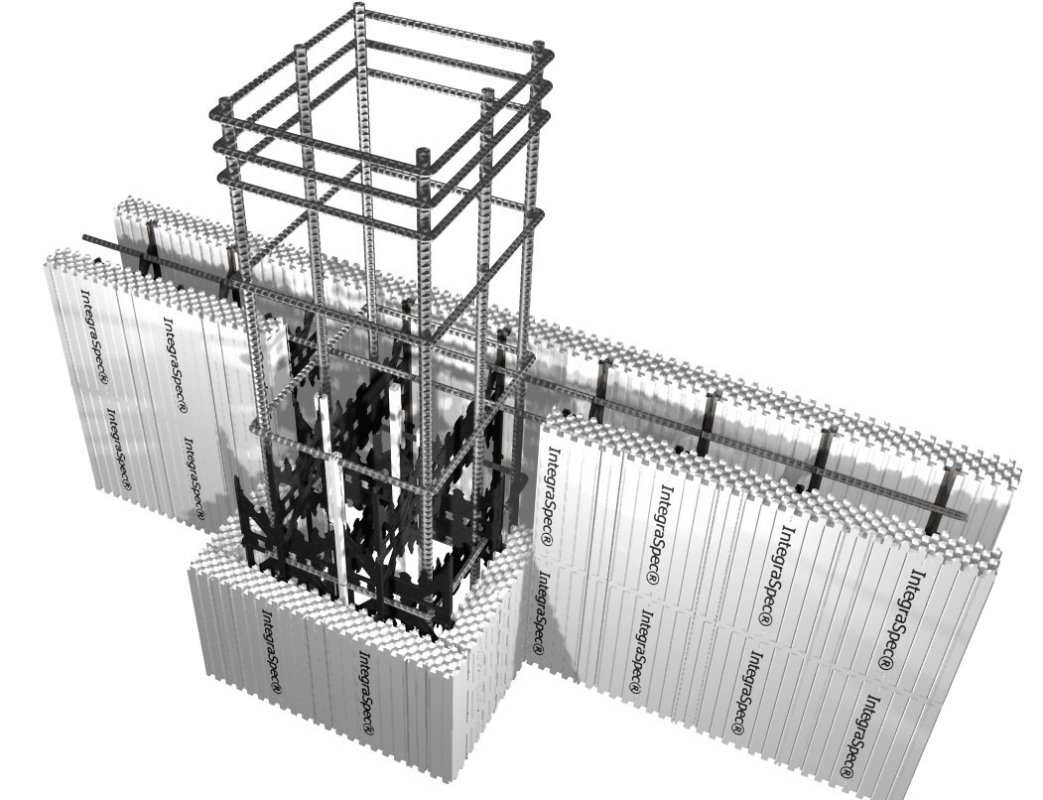

webs/spacers (inside the panel’s plastic inserts/studs) also allow quick installation of forms around rebar
(seismic & multi‑level design) and steel columns without having to drop forms from a ladder, scaffold, or
boom. This also allows one side of the wall with webs/spacers to be constructed for easy placement of
complex rebar and stirrups. Independent panels can also be assembled and positioned differently on the
opposite side of the wall—panels can be up or down, left or right relative to each other.
Specifications
Typical Panel Dimension(s)
Length 48.0" x Width 2.5" x Height 12.25" (interlocked)
(Length 122 cm x Width 6.35 cm x Height 31.12 cm)
Note: part dimensions may vary slightly due to EPS material shrinkage (100% recyclable)
Standard Concrete Cavity / Core
4'' (10,2cm) / 5'' (12,7 cm) / 6'' (15,2cm) / 8'' (20,3cm) / 10'' (25,4cm) / 12'' (30,5cm)
Total Wall Width (2 Integra Panels + Concrete Core)
9'' (22,9 cm) / 10'' (25,4 cm) / 11'' (27,9 cm) / 13'' (33,0 cm) / 15'' (38,1 cm) / 17'' (43,2 cm)
Integra Foam panel(s) Material
Flame Retardant Type 2, Expanded Polystyrene (EPS), Density = 1.5 pounds/cubic/feet (pcf) (24.14 kg/m3)
Integra Plastic Insert(s) Material
High Impact Polystyrene (HIPS) (100% recycled material)
Unique and Special Interlocking Features of the Panels
Patented bi-directional and or reversible (No top, bottom, left, or right hand side). Enables faster and more accurate installation and eliminates waste.
Interlocking Design
Unique special patented friction and mechanical interlocks
Typical Fastening Studs / Strapping
Vertical 1⅝" (4.13 cm) wide located every 8" (20 cm) OC
Exterior Surface Area
4.08 ft2 (0.38 m2) (interlocked)
Concrete Volume 4" (10.16 cm) Wall
0.05 yd3 (0.039 m3)/ Standard Form Unit
Concrete Volume 5" (12.70 cm) Wall
0.06 yd3 (0.048 m3)/ Standard Form Unit
Concrete Volume 6" (15.24 cm) Wall
0.08 yd3 (0.058 m3)/ Standard Form Unit (shown above)
Concrete Volume 8" (20.32 cm) Wall
0.10 yd3 (0.077 m3)/ Standard Form Unit
Concrete Volume 10" (25.40 cm) Wall
0.12 yd3 (0.094 m3)/ Standard Form Unit
Concrete Volume 12" (30.48cm) Wall
0.151 yd3 (0.11 m3)/ Standard Form Unit
Qtys / Area / Meters per Bundle
18 Standard Panels (9 Blocks) 36.72 ft2 (3.41 m2) of wall area (incl. both sides of wall)
THE BENEFITS OF INTEGRASPEC®
ENERGY EFFICIENCY
Owners enjoy energy savings up to 100% (Net Zero).
STRUCTURAL STABILITY
IntegraSpec® offer great protection from high winds in hurricane and tornado areas, withstanding winds in excess of 250 mph.
QUIET
STC rating of 50+ (or greater when combined with other sound reduction materials).
IMPROVED AIR QUALITY
No volatile organic compounds (VOCs) and does not support the growth of mold or mildew.
MOISTURE PROTECTION
IntegraSpec® eliminate moisture and condensation.
FIRE PROTECTION
Fire protection for several hours ensuring superior safety for your family.
FAST & RELIABLE
By using IntegraSpec ICF you complete 6 steps in one application
THE ECO-FRIENDLY SOLUTION
100% recyclable material, Net Zero homes / Leed / Passivhaus, geothermal shell compliant
REDUCE WASTES ON SITE
Panels are reversible and bi-directional, eliminating top, bottom, right and left, greatly reducing waste of material.
